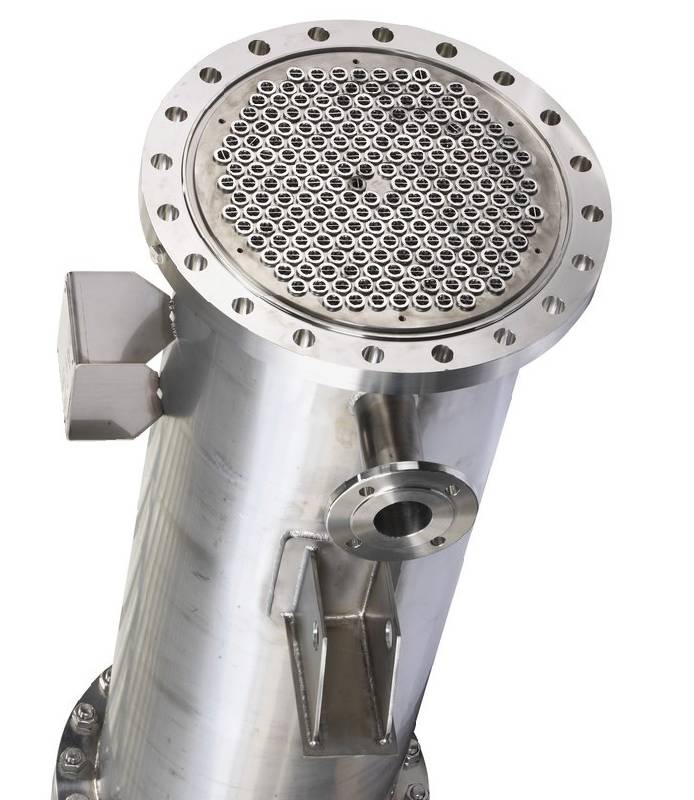

A shell and tube heat exchanger is a number of the most normally used heat exchangers in various industries. It consists of a chain of tubes, one set of which contains a fluid that wishes to be heated or cooled. The 2d set, in the shell, holds an exclusive fluid that flows across the tubes to either absorb or launch warmth, relying on the application. This easy yet green design makes it best for moving heat among two fluids without blending them. Anpam Engineering offers Shell and Tube Heat Exchangers designed for green and reliable heat transfer. Built with long lasting substances and unique engineering, these exchangers are perfect for diverse industrial programs, ensuring performance, toughness, and easy renovation.

Principle and Working of Shell and Tube Heat Exchangers

The principle of a shell and tube heat exchanger is based on the idea of thermal conduction. The heat from the hotter fluid (within the tubes or the shell) transfers via the tube walls to the cooler fluid. Here’s a fundamental breakdown of the operating:

• Fluid Inlets: shell & tube heat exchanger has two sets of inlets, for fluid entering a tube and for fluid coming into one shell.
• Flow Pattern: The liquid floats in opposite directions (counter-current weft) or within the same way (co-current waft). A counter-modern float is usually extra green.
• Heat Exchange: Two liquids ignore each other, heat transfer between them through tube partitions, cooling the hot liquid and heating a cold one.
• Liquid Outlets: After the heat switch, the liquid is left by the relevant outlets at different temperatures.

This procedure of heat alternate is used across many industries due to its ability to deal with high pressures and temperatures, in addition to its customizable design.
